Receive and Verify HIOBuy Webhooks: Cloudflare Demo

For teams that already have a website or app, and need warehouse fulfillment lifecycle updates pushed into their backend — not a white-label storefront, and not a C-end shopping widget.

You already have orders, an ERP, or an ops dashboard. Packages arrive at a China warehouse. Consolidation finishes. A shipment is ready for payment, then dispatched, then delivered — or something fails along the way. Polling every few minutes works until it does not. The extra piece some teams want is a signed HTTPS webhook: HioBuy pushes the event; your server verifies it, deduplicates it, and updates your own systems.

That is a fulfillment integration problem, not a storefront-skin problem. HIOBuy powers the China-side warehouse and the webhook protocol behind it. Your backend owns the endpoint, the secret, and the business handlers. The open-source reference is github.com/hiobuy/webhooks-demo (MIT). Live demo: webhooks.demo.hiobuy.com. Docs: HioBuy Webhooks. Developer portal: developers.hiobuy.com. The rest of this post is how the Cloudflare demo receives, verifies, deduplicates, and inspects those events — and where it stops.

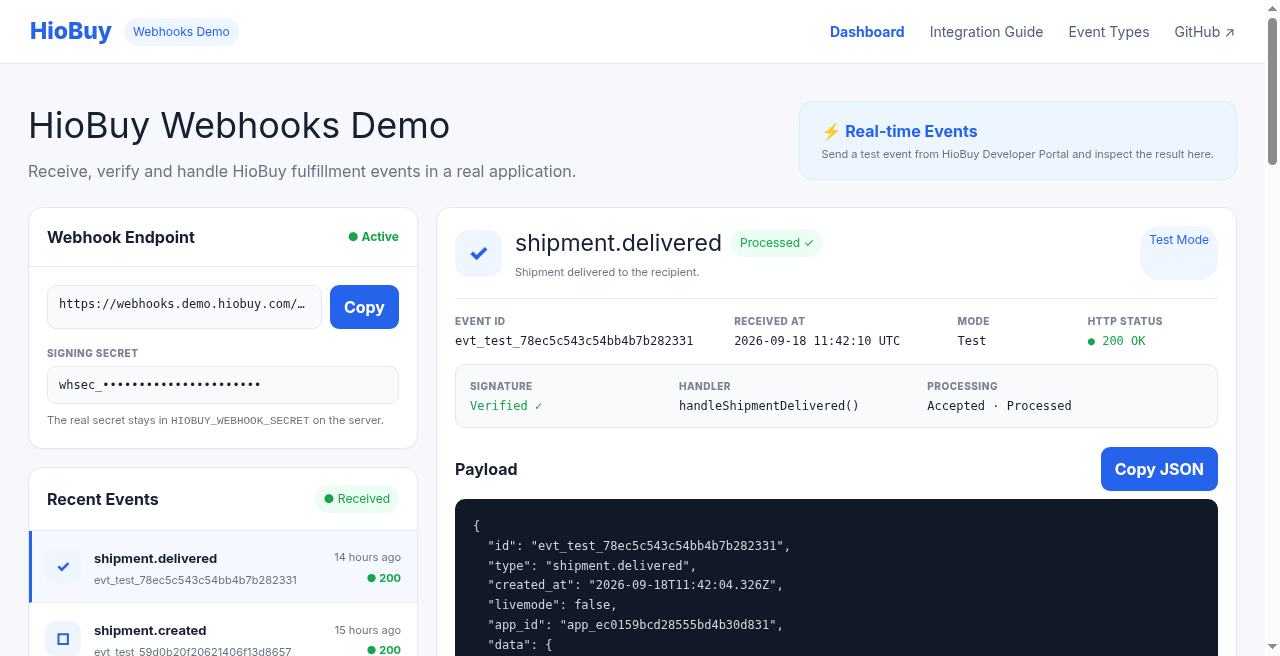

Dashboard at webhooks.demo.hiobuy.com. Left: endpoint URL, masked whsec_… hint, recent events. Right: a selected test event (livemode: false) with signature verified, handler name, and sanitized payload. Public inspector shows test events only.

Who this is for

B-end builders wiring warehouse fulfillment into their own order or ERP systems. You need:

• Channel Auth fulfillment mode = HioBuy warehouse. Self-fulfillment apps can view the portal intro but cannot create or enable webhook endpoints.
• An HTTPS receiver you control (this demo uses Cloudflare Workers).
• A place to map event types into your order status, notifications, or billing — not a HioBuy-hosted storefront.

If you are looking for catalog search, shipping estimates, or package tracking lookups, those are separate demos (linked at the end). This one is push-based lifecycle events.

What webhooks push vs polling

Same developer portal. Different delivery model.

Approach	How you learn status	This demo
Poll Public Fulfillment APIs	Your job asks HioBuy on a schedule	No
Webhooks	HioBuy POSTs JSON to your HTTPS URL	Yes
Endpoint management	Create / rotate / retry in portal	Portal only — no Public /v1/webhooks/* in v1

Public API responses never wait on your webhook server. Delivery is at-least-once. You must verify signatures and dedupe on event.id.

Official transport constraints (cite docs):

Item	Value
Method / body	POST JSON
Timeout	10 seconds
Success	HTTP 2xx
Retries	Up to 5: immediate, then 1m / 5m / 30m / 2h
Payload size	≤ 64 KB
Retention	~30 days events / ~14 days attempts

Portal Send test produces livemode: false events with ids like evt_test_*. Use that path to validate a receiver before live warehouse push is enabled for your channel (docs: progressive rollout).

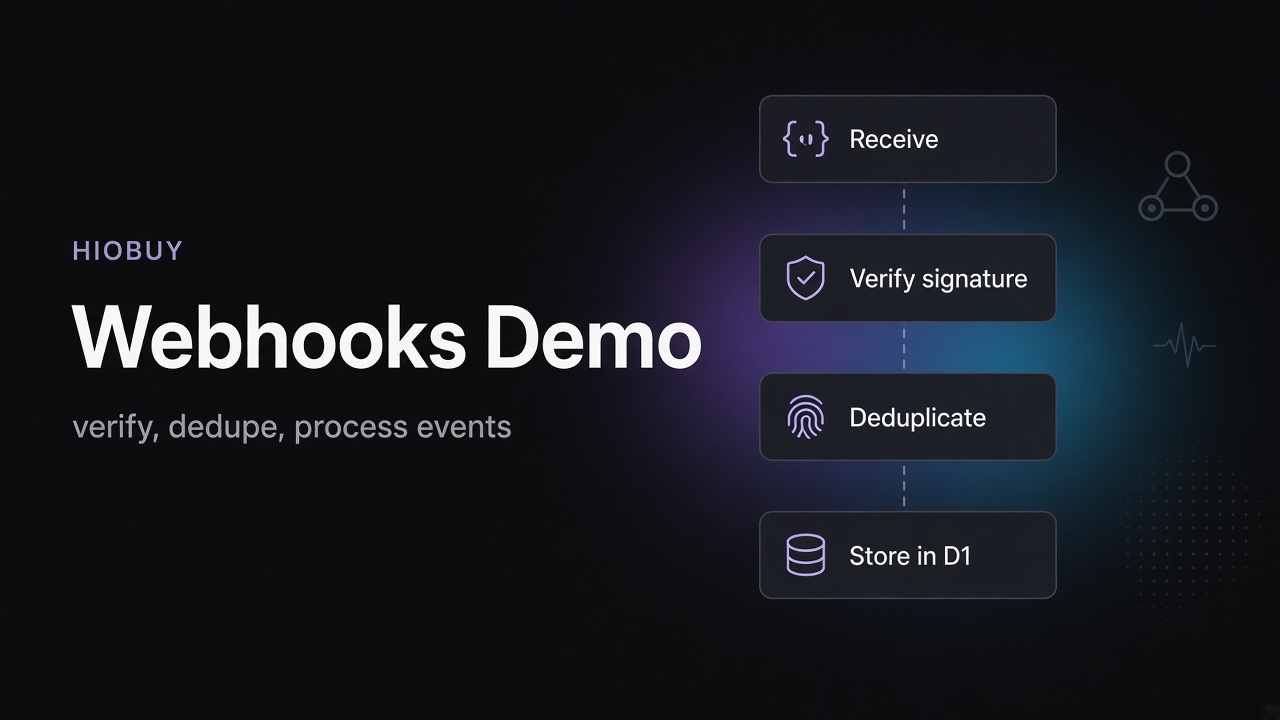

Demo architecture

Cloudflare-native stack from the README: Next.js App Router + TypeScript, vinext on Cloudflare Workers, Cloudflare D1, pnpm, Node.js 20+, MIT.

HioBuy
  → POST /api/webhooks/hiobuy
  → verify HioBuy-Signature (raw body)
  → dedupe event.id (D1 unique)
  → handler (lib/event-handler.ts)
  → D1
  → demo UI

Key files:

File	Role
app/api/webhooks/hiobuy/route.ts	Receive raw body → verify → dedupe → handle
lib/hiobuy-webhooks.ts	Signature parse, tolerance, HMAC-SHA256
lib/event-handler.ts	Thin per-type handlers

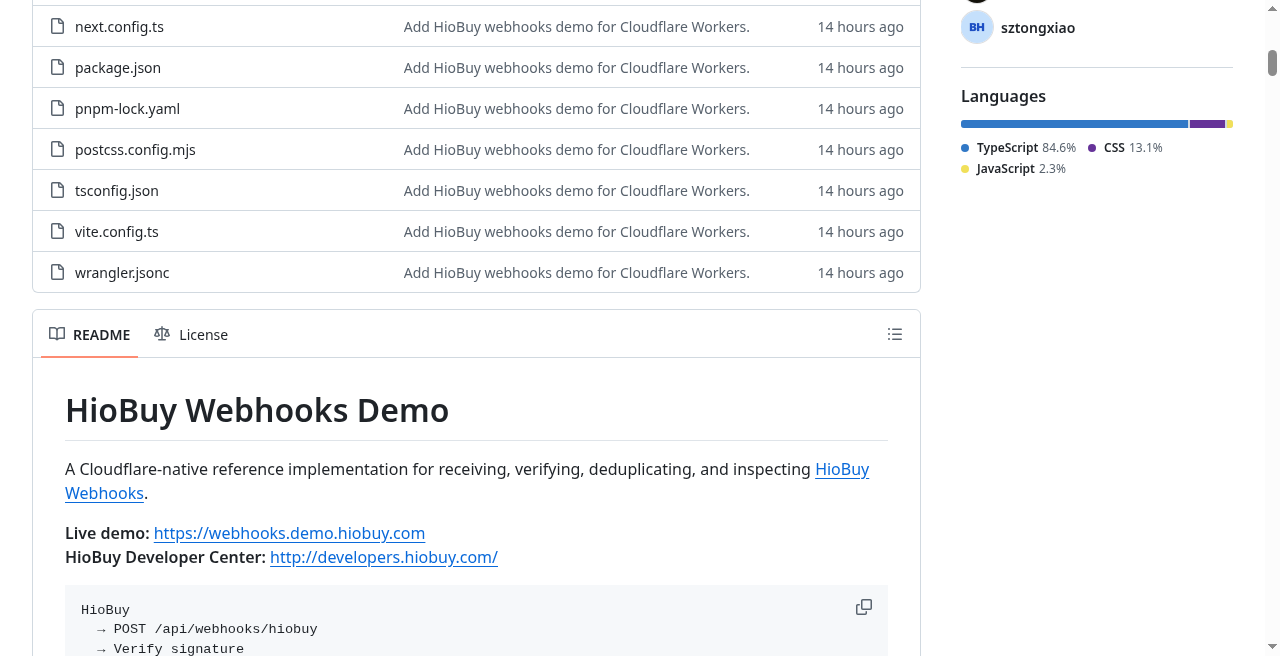

Source at github.com/hiobuy/webhooks-demo: Cloudflare Workers config (wrangler.jsonc), Next/vinext app, MIT reference for verify → dedupe → inspect.

Signature verification (raw body)

HioBuy delivers headers like:

POST /api/webhooks/hiobuy HTTP/1.1
Content-Type: application/json
User-Agent: HioBuy-Webhooks/1.0
HioBuy-Event-Id: evt_01HXYZ…
HioBuy-Signature: t=<unix_seconds>,v1=<hex_hmac>

Secret format: whsec_… (shown once at create/rotate in the portal).

Signed payload (exact raw body bytes — do not JSON-parse then re-serialize):

{t}.{raw_body}

Expected digest: HMAC-SHA256(secret, signed_payload), hex-encoded. Compare with a timing-safe equality check. Reject if |now - t| > 5 minutes (300 seconds) to limit replay.

Conceptual Node.js shape (aligned with docs and lib/hiobuy-webhooks.ts):

import crypto from "node:crypto";

const TOLERANCE_SEC = 300;

export function verifyHioBuyWebhook({
  rawBody,
  signature,
  secret,
}: {
  rawBody: string;
  signature: string | null;
  secret: string;
}) {
  const match = /^t=(\d+),v1=([0-9a-f]+)$/i.exec(signature || "");
  if (!match) return false;

  const timestamp = Number(match[1]);
  const expected = match[2].toLowerCase();
  if (!Number.isFinite(timestamp)) return false;

  const now = Math.floor(Date.now() / 1000);
  if (Math.abs(now - timestamp) > TOLERANCE_SEC) return false;

  const signedPayload = `${timestamp}.${rawBody}`;
  const digest = crypto
    .createHmac("sha256", secret)
    .update(signedPayload, "utf8")
    .digest("hex");

  const a = Buffer.from(digest, "utf8");
  const b = Buffer.from(expected, "utf8");
  return a.length === b.length && crypto.timingSafeEqual(a, b);
}

Preserve the raw body before verify. Parse JSON only after the signature check succeeds. Keep HIOBUY_WEBHOOK_SECRET on the server — never in browser JS.

Idempotency and retries

Docs: treat delivery as at-least-once. Deduplicate on envelope id (and optionally HioBuy-Event-Id).

The demo enforces uniqueness on event.id in Cloudflare D1. If a duplicate arrives after acceptance:

1. Return 200 again so HioBuy does not keep retrying an already-accepted event.
2. Do not re-run business logic.

Receive → Check event.id
  ├─ Exists → 200 OK (no reprocess)
  └─ New → Process → Store → 200 OK

Retries (docs): up to 5 attempts — immediate, then 1 minute, 5 minutes, 30 minutes, 2 hours. Respond 2xx within 10 seconds once the event is safely accepted.

Envelope and event catalog

Public envelope fields: id, type, created_at, livemode, app_id, data.

Field	Notes
id	evt_… live; evt_test_… portal tests
type	Catalog event name
livemode	false for Send test
data	Event-specific payload

Events the demo surfaces (aligned with docs catalog):

Category	Event type
Procurement	procurement.failed, procurement.out_of_stock
Warehouse	package.received, package.exception
Consolidation	consolidation.completed
Shipping	shipment.created, shipment.ready_for_payment, shipment.dispatched, shipment.delivered, shipment.exception
Account	balance.low

For current data shapes, use the official data shapes section — do not invent fields.

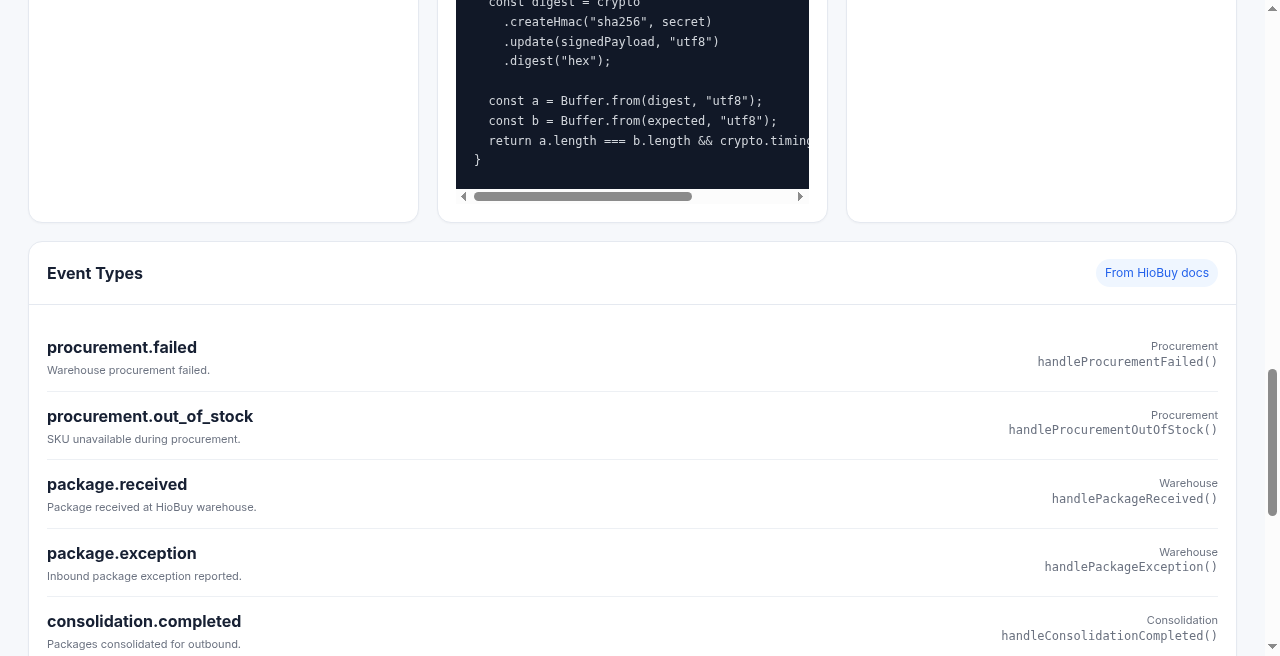

Event Types view in the demo: catalog names mapped to thin handlers such as handlePackageReceived(). Educational wiring for your order/ERP layer — not a claim that every historical step is always present on every order.

Hands-on: local + send:test

1. Prerequisite

In developers.hiobuy.com, set Channel Auth fulfillment mode to HioBuy warehouse. Create a webhook endpoint when you are ready (HTTPS URL, ≥1 subscribed event). Copy whsec_… when the portal shows it.

2. Clone and configure

git clone https://github.com/hiobuy/webhooks-demo.git
cd webhooks-demo
pnpm install
cp .dev.vars.example .dev.vars

Set in .dev.vars:

HIOBUY_WEBHOOK_SECRET=whsec_your_secret_here

Never commit .dev.vars or real secrets.

3. Migrate and run

pnpm d1:migrate
pnpm dev

Open http://localhost:5173 (vinext). Recent Events stays empty until a verified webhook is stored in D1.

4. Signed local test

HIOBUY_WEBHOOK_SECRET=whsec_your_secret_here pnpm send:test

That posts a correctly signed payload to your local receiver so you can exercise verify → dedupe → store without waiting on portal delivery.

Public demo safety

The live host is for illustration:

• Public GET /api/events returns only livemode: false events.
• Payloads are sanitized for the UI.
• The signing secret stays in Workers secrets / .dev.vars — never exposed to the browser.
• Do not point production traffic at the public demo as a proxy, and do not use a public debugger to display live customer payloads.

Portal endpoint URL for this demo after deploy:

https://webhooks.demo.hiobuy.com/api/webhooks/hiobuy

Deploy notes

High-level path from the README:

1. wrangler d1 create (then wire the database id as documented in the repo)
2. pnpm d1:migrate:remote
3. wrangler secret put HIOBUY_WEBHOOK_SECRET
4. pnpm build
5. pnpm deploy

Do not put the production secret in wrangler.jsonc. After deploy, paste https://webhooks.demo.hiobuy.com/api/webhooks/hiobuy (or your own host) into the developer portal, subscribe to events, and use Send test.

Where it stops

This demo stops at receive → verify → dedupe → inspect. It does not:

• create shipments, take payment, or replace your ERP
• expose a Public /v1/webhooks/* management API (portal-only in v1)
• guarantee live warehouse→developer push is enabled for every channel today (use Send test; cite docs)
• quote freight or look up tracking by serial number

If you need estimates before you ship, use the shipping-quotes path. If you need status after an international parcel is moving and you hold a logistics / order / client number, use tracking. If you need async lifecycle push into your own backend — this webhook path is the one.

Links

• Live demo: webhooks.demo.hiobuy.com
• Source (MIT): github.com/hiobuy/webhooks-demo
• API docs: HioBuy Webhooks
• Developer portal: developers.hiobuy.com
• Related: Shipping Quotes Fulfillment API
• Related: Track Packages on Your Own Site

---

Next step

If you already understand the workflow, move to the API reference for exact request and response fields, or open the developer console to create your application.
