Track Packages on Your Own Site: HIOBuy Tracking Demo

For teams that already have a website or app, and need international package tracking on their frontend after warehouse fulfillment — not a white-label storefront, and not a C-end shopping widget.

You already have a site, or you are about to build one. Orders move through a China warehouse. Parcels leave on international channels. The extra piece some teams want is a tracking page the buyer (or the operator) can open on your domain: current status, shipping channel, and a clear event timeline. With the API key never leaving your server.

That is a fulfillment tracking problem, not a storefront-skin problem. HIOBuy powers the China-side warehouse and the tracking APIs behind it. Your backend looks up a shipment by a serial number you already have — logistics number, warehouse order number, or your own external shipment number — and returns a normalized response. The open-source demo is github.com/hiobuy/tracking-demo (MIT). Live demo: tracking.demo.hiobuy.com. The rest of this post is how to run it, what GET /v1/fulfillment/tracking actually does, and where the demo stops.

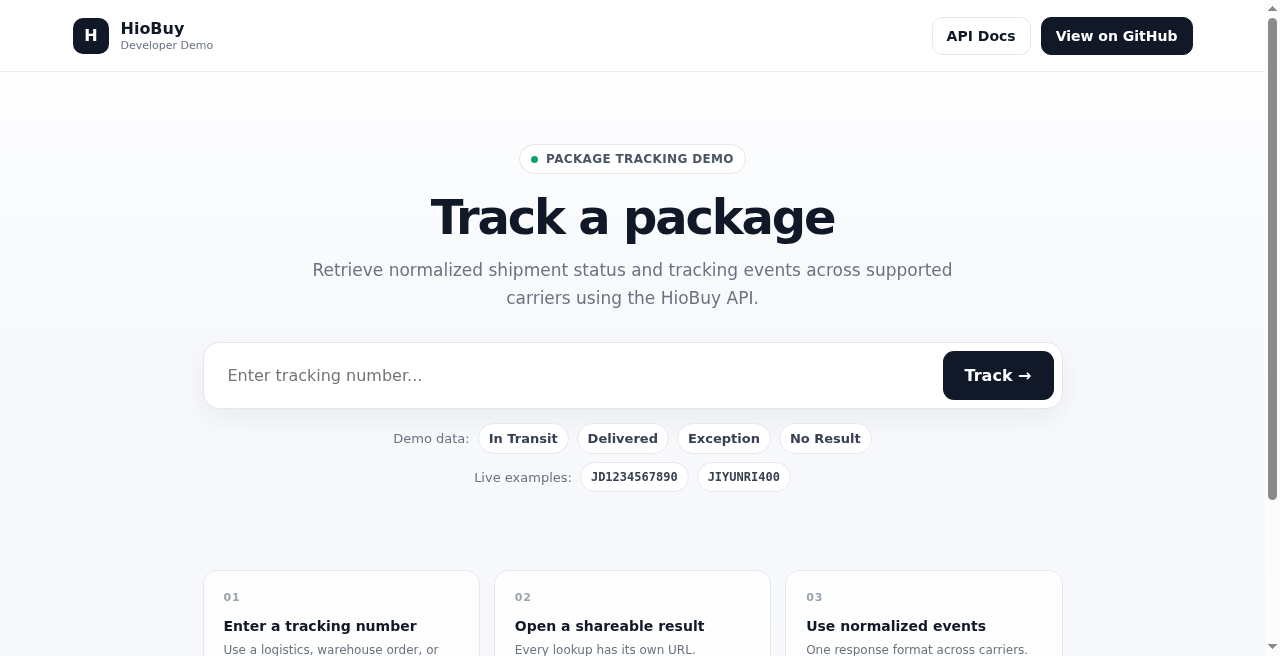

Welcome UI at tracking.demo.hiobuy.com. Headline: “Track a package.” Copy: retrieve normalized shipment status and tracking events. Demo-data shortcuts (In Transit, Delivered, Exception, No Result) exercise the UI without a live key; other numbers hit the live API when configured.

sn-based tracking vs shipment-id tracking vs domestic trace

Same developer portal. Different surfaces. Do not mix them.

Integration	Endpoint	What it is for	This demo
sn-based international tracking	GET /v1/fulfillment/tracking?sn=	Lookup when HioBuy shipment ID is not known	Yes — primary
ID-oriented shipment tracking	GET /v1/fulfillment/shipments/{shipment_id}/tracking	When you already have HioBuy id or external_shipment_id	Mentioned; not primary
Domestic procurement trace	POST /v1/orders/logistics/trace	Seller → warehouse	No
Warehouse inbound packages	packages tracking	Inbound package timeline at the warehouse	No

HIOBuy is the China warehouse and fulfillment layer. You still own the frontend, the URLs on your domain, and whatever you wrap around a tracking result. This post does not pitch a consumer tracking gadget. It is the B-end path: your app talks to Fulfillment tracking so a buyer on your site can follow a parcel after international shipping starts.

Canonical tracking reference: hiobuy.com/en/api-docs/fulfillment-tracking. Developer portal: developers.hiobuy.com. Related shipping-quotes guide (channels and estimates before you ship): Shipping Quotes Fulfillment API.

When you do not have a HioBuy shipment ID

Use the sn-based endpoint:

GET /v1/fulfillment/tracking?sn={sn}
Authorization: Bearer <server-only key>

sn may be:

• a logistics number (logistics_sn)
• a warehouse order number (order_sn)
• a developer-supplied external shipment number (client_order_sn)

HioBuy forwards sn unchanged; the warehouse identifies the type. URL-encode sn when you build the query string. The endpoint requires the tracking:read scope.

When you already have a shipment id

The ID-oriented route remains available:

GET /v1/fulfillment/shipments/{shipment_id}/tracking

Path {shipment_id} accepts either the HioBuy shipment id or the external_shipment_id you supplied at create time. Numeric-only values are treated as warehouse shipment_id. Any value with a non-digit is treated as external_shipment_id. Prefix developer identifiers — for example shp_MY-INTL-ORDER-001 — because numeric-only values are reserved for HioBuy internal IDs.

The tracking-demo uses the sn-based endpoint as its primary path. The ID route is documented so you can choose the right call when your backend already stores a HioBuy shipment id.

What the demo actually does

One primary API. Mapped 1:1 to a local Route Handler.

Purpose	HIOBuy API	Local demo endpoint
Package tracking lookup	GET /v1/fulfillment/tracking?sn=	GET /api/tracking?sn=

What you get in the UI:

• Package tracking lookup
• Normalized shipment status
• Tracking event timeline
• Shipping channel information
• Shareable tracking result URLs
• Developer View: public proxy request, sanitized normalized response, identifiers, status/events, request_id — Authorization never exposed
• Built-in demo data without an API key for UI testing

It does not create a shipment, take payment, run domestic seller→warehouse trace, or show warehouse inbound package timelines. Those stay out of this repository on purpose.

Demo data caveat

Only the built-in demo-number shortcuts (In Transit, Delivered, Exception, No Result) use local responses. All other numbers hit the live API when HIOBUY_API_KEY is set. The public demo host is for illustration — do not point production traffic at it as a proxy.

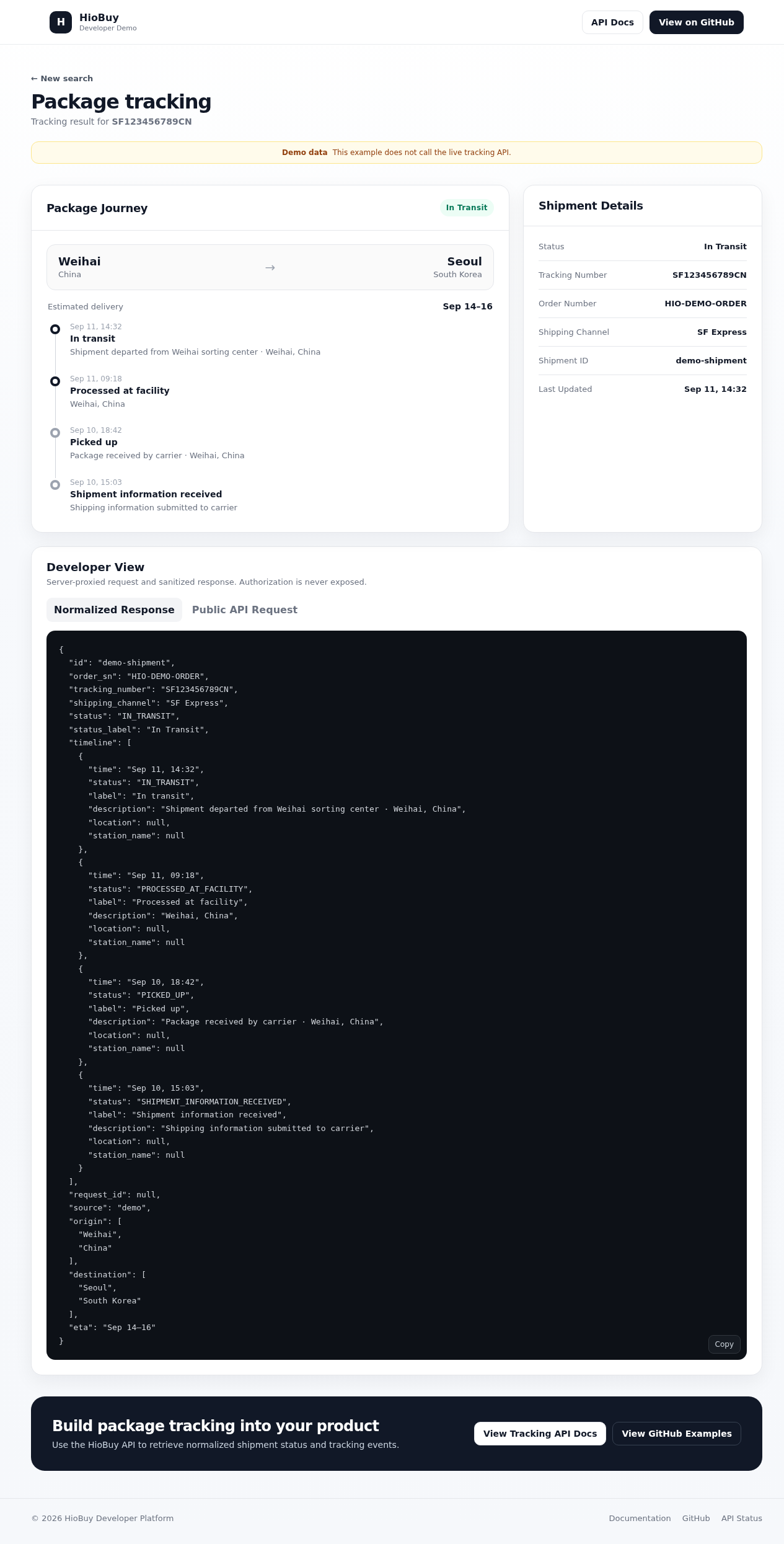

Demo data “In Transit” at tracking.demo.hiobuy.com. Yellow banner: this example does not call the live tracking API. Left: package journey and event timeline. Right: shipment details (status, tracking number, order number, shipping channel). Below: Developer View with sanitized normalized JSON — Authorization never shown.

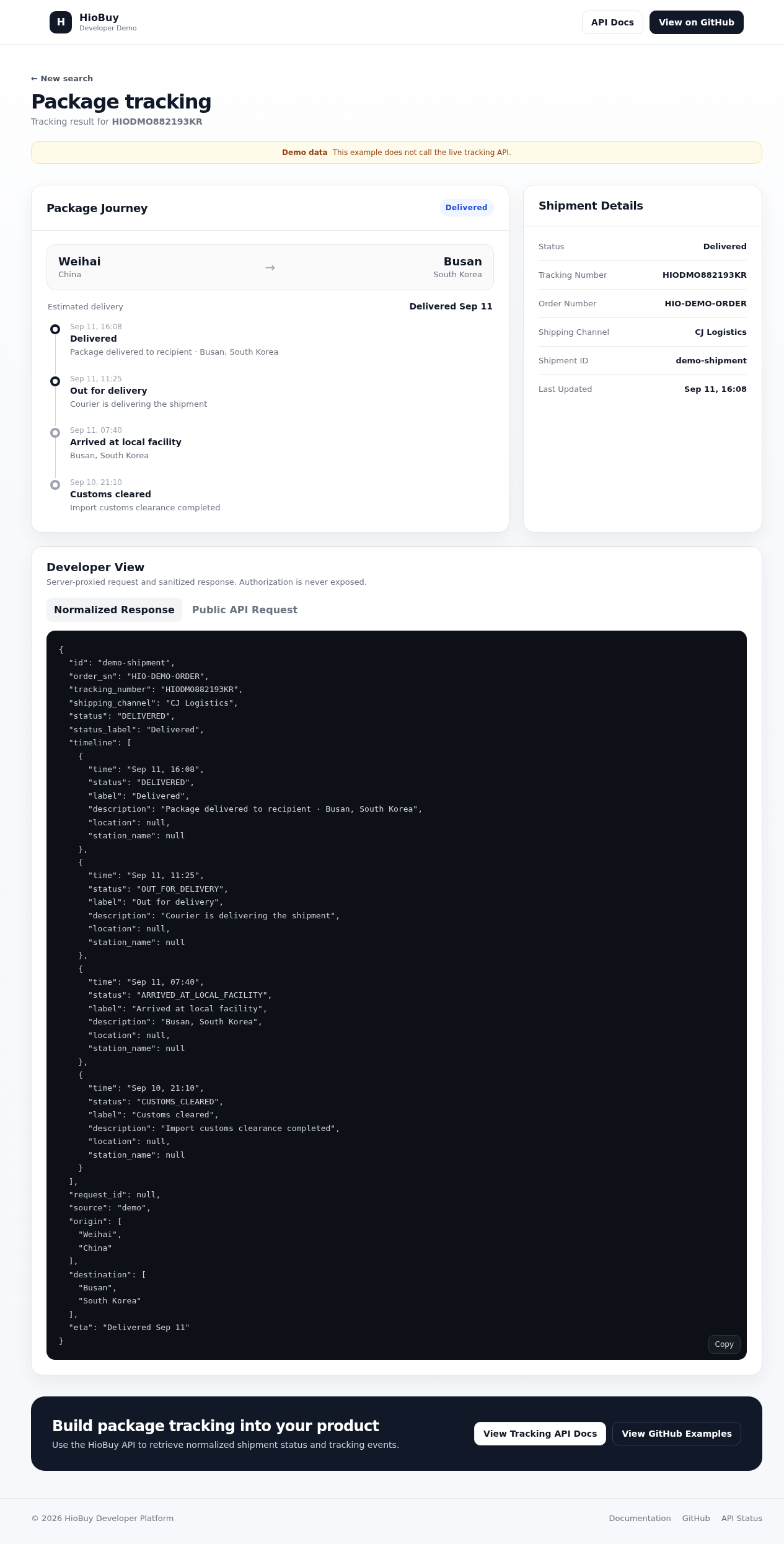

Demo data “Delivered” — same layout, status badge and timeline events updated through delivery. Useful for wiring your own UI against a stable response shape before you flip to live numbers.

Hands-on: get a key, clone, run

1. Get an API key

Create a developer account at developers.hiobuy.com, create an App, and issue an API key with the tracking:read scope. Without that scope you will see a permission error on the tracking route.

2. Clone the demo

MIT licensed. Next.js. Node.js 20 or newer, plus pnpm.

git clone https://github.com/hiobuy/tracking-demo.git
cd tracking-demo

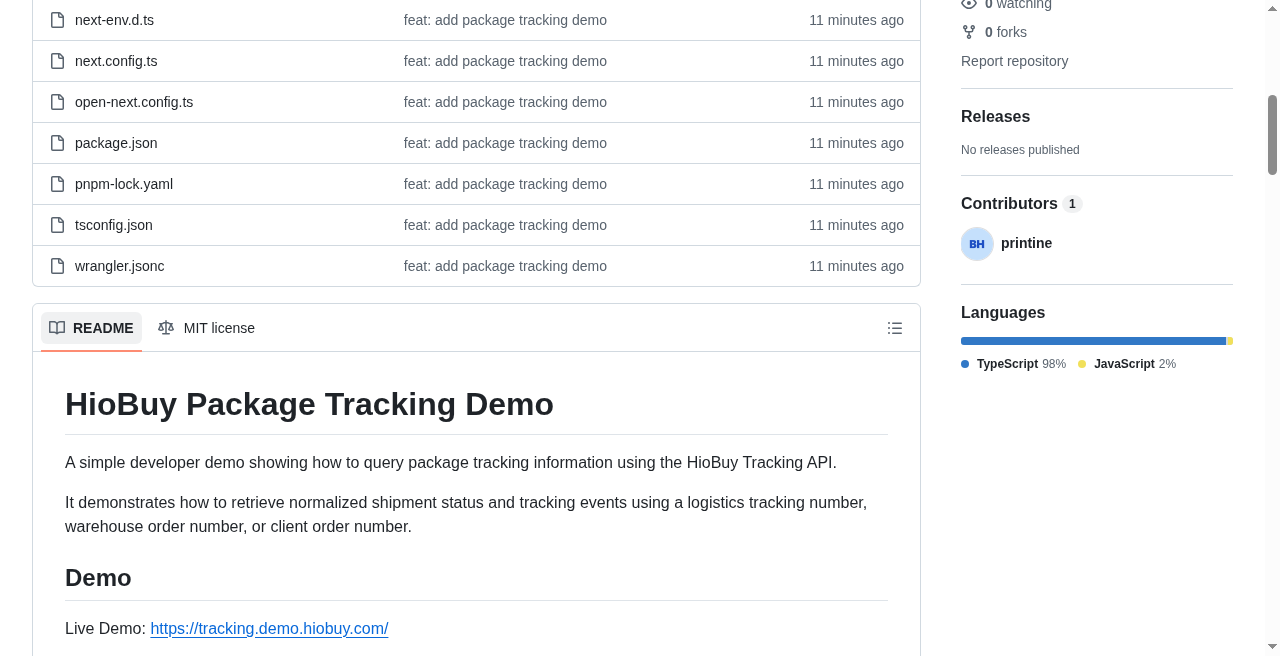

github.com/hiobuy/tracking-demo — MIT, Next.js / TypeScript. README links the live demo at tracking.demo.hiobuy.com.

3. Keep the key on the server

cp .env.example .env.local

Then set:

HIOBUY_API_KEY=your_api_key_here

Optional:

HIOBUY_API_BASE_URL=https://api.hiobuy.com

Never commit .env.local. Never put the key in frontend code, and never prefix it NEXT_PUBLIC_. The browser never calls HIOBuy directly.

4. Install and run

pnpm install
pnpm dev

Open http://localhost:3000. You should get the same tracking UI as the public demo, against your own App when a live number is entered.

Useful checks:

pnpm typecheck
pnpm test
pnpm build

How the request actually travels

Browser
   │  GET /api/tracking?sn={tracking-number}
   ▼
Next.js Route Handler  (app/api/tracking)
   │  Read server-only HIOBUY_API_KEY
   │  Authorization: Bearer <key>
   ▼
HIOBuy Fulfillment API
   GET /v1/fulfillment/tracking?sn=
   ▼
JSON to the browser  (no API key)

The local proxy accepts sn, adds the Bearer key on the server, and forwards to upstream GET /v1/fulfillment/tracking?sn=. Frontend code should call /api/tracking, not the HIOBuy host.

If you already have a frontend in another stack, keep the same split: secret on the server, one thin proxy, your UI as the only thing users see.

Errors the demo route surfaces

The Route Handler normalizes common failures (demo behavior — useful when you mirror the pattern):

Condition	Demo / local code	HTTP
Invalid sn length	INVALID_TRACKING_NUMBER	400
Missing API key	TRACKING_NOT_CONFIGURED	503
Bad credentials	TRACKING_AUTH_ERROR	401
Missing tracking:read	TRACKING_PERMISSION_ERROR	403
Not found	TRACKING_NOT_FOUND	404
Upstream / network failure	TRACKING_NETWORK_ERROR	502

The server also checks both HTTP status and the JSON body. Some warehouse business failures return HTTP 200 with "success": false. Treat that as failure, not as a successful empty track.

Response fields and timeline

Docs describe a detail-aligned subset. The demo normalizes toward that shape for the UI:

Field	Role
id	Shipment identifier
order_sn	Warehouse order number
shipping_channel	{code, name}
international_tracking	{tracking_number, carrier}
status	Business status code
status_label	Display label
timeline[]	Events: {code, title, occurred_at}
request_id	Correlation id from the API

Statuses from the docs include PENDING, WAIT_PAYMENT, WAIT_SHIP, SHIPPED, SIGNED, and CANCELLED — cite the fulfillment tracking docs as the source of truth. The demo UI also shows local demo states (In Transit, Delivered, Exception, No Result) for the built-in example numbers only.

Example shape (aligned with docs; demo may normalize display fields for the UI):

{
  "id": "118",
  "order_sn": "JIYUNRI1358",
  "shipping_channel": {
    "code": "CJ-SEA",
    "name": "E-commerce Sea - CJ"
  },
  "international_tracking": {
    "tracking_number": null,
    "carrier": null
  },
  "status": "PENDING",
  "status_label": "Pending",
  "timeline": [
    {
      "code": null,
      "title": "Order created",
      "occurred_at": "2026-08-23 11:14:58"
    }
  ],
  "request_id": "req_xxx"
}

Wire your UI to status / status_label and timeline[] rather than scraping free-text carrier pages. That is the point of a normalized fulfillment tracking response.

Developer View and shareable URLs

Every successful lookup in the demo can open as its own result URL — useful for sharing a track with an operator or for linking from your own order page while you prototype.

Developer View shows:

• the public proxy request (GET /api/tracking?sn=…)
• the sanitized normalized response
• identifiers, status, events, and request_id

It never exposes the Authorization header or the raw API key. That is the pattern to copy: your users see your domain; your server holds the key.

Where it stops

This demo stops at read tracking. It does not:

• create or pay for a shipment
• quote channels or freight (see the shipping quotes guide and the shipping-quotes demo)
• trace domestic procurement (seller → warehouse)
• replace warehouse inbound package timelines

If you need estimates before you ship, start with shipping quotes. If you need status after the parcel is on an international channel and you hold a logistics number, warehouse order number, or client order number — this tracking path is the one.

Links

• Live demo: tracking.demo.hiobuy.com
• Source (MIT): github.com/hiobuy/tracking-demo
• API docs: Fulfillment tracking
• Developer portal: developers.hiobuy.com
• Related: Shipping Quotes Fulfillment API

---

Next step

If you already understand the workflow, move to the API reference for exact request and response fields, or open the developer console to create your application.
